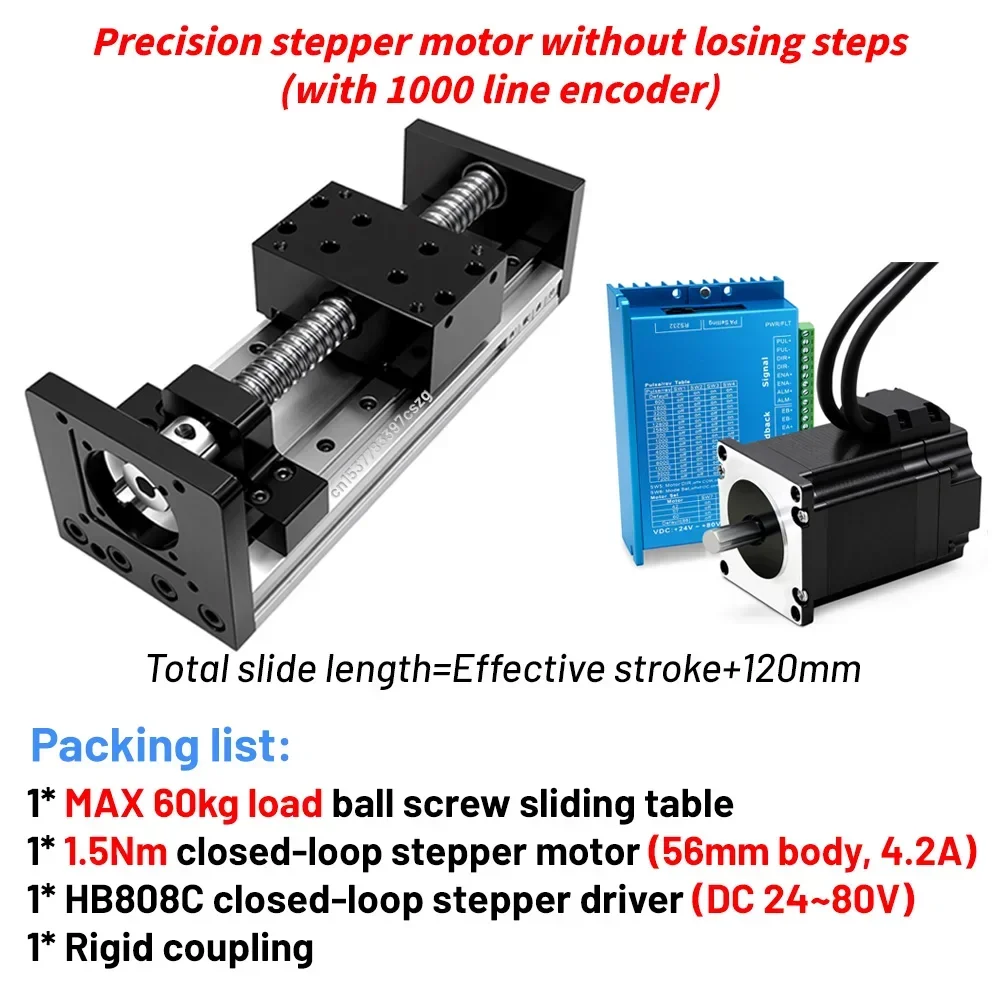

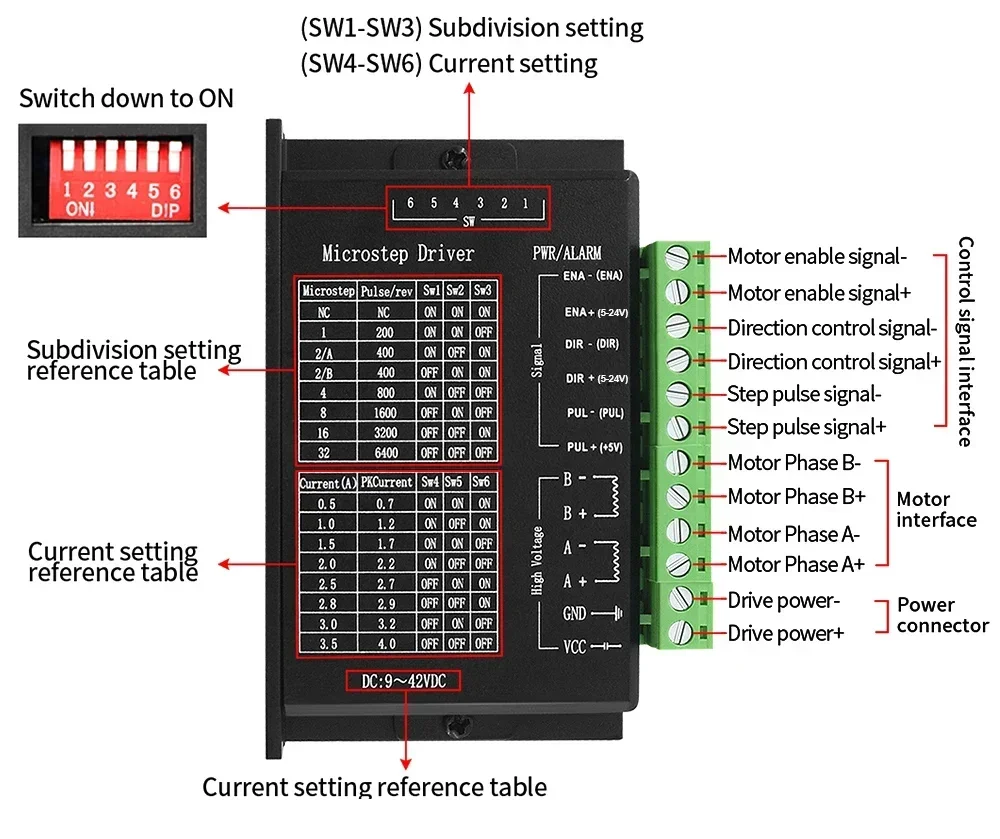

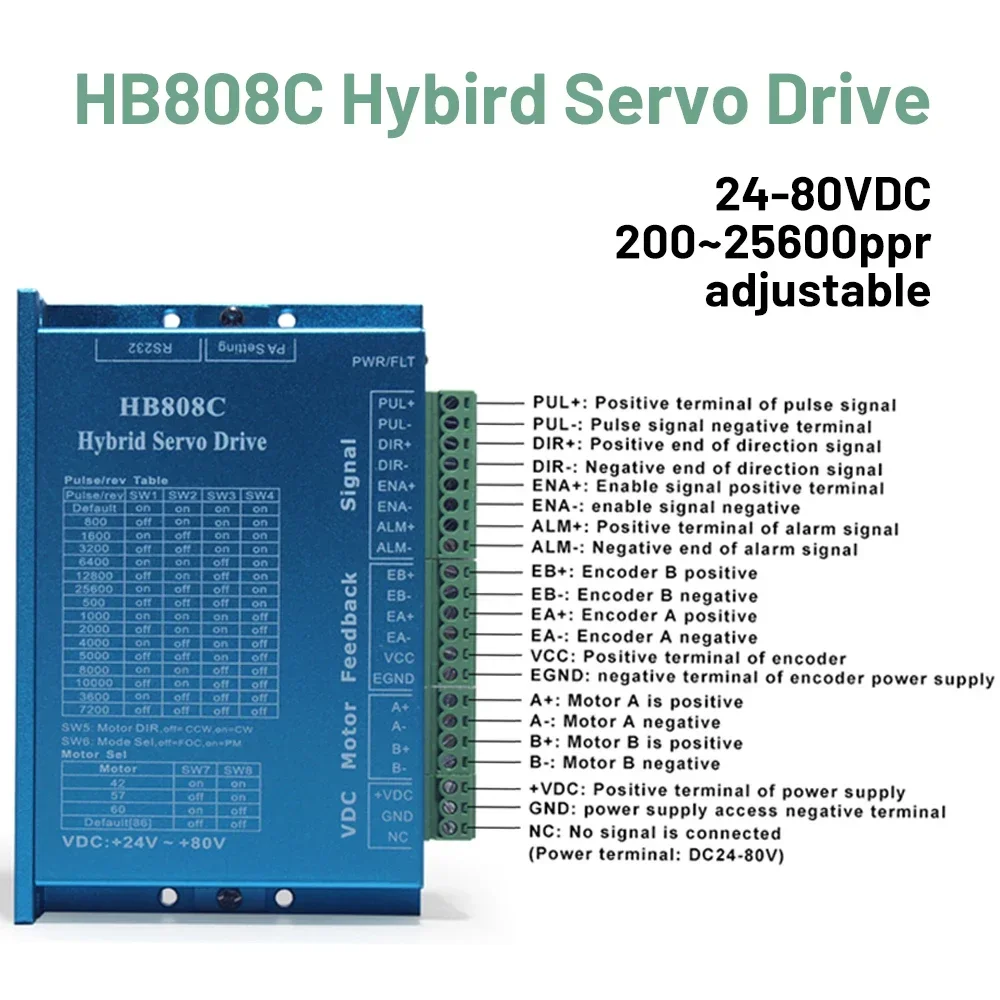

Dear friend, we will ship according to your selection. ● Only Slide Table: 1* Double Rail Slide Table 1* 8mm to 8mm Coupling for 8mm shaft Nema 23 Stepper Motor ● 1.2/2/3Nm Slide Motor: 1* Double Rail Slide Table 1 * Nema 23 57mm Open-loop Stepper Motor 1* TB6600 Driver 1* 8mm to 8mm Coupling ● 1.5/2.2Nm Encoder motor: 1* Double Rail Slide Table 1* Nema 23 57mm Closed Loop Stepper Motor 1* HB808C Driver 1* 8mm to 8mm Coupling ● 1.5/2/3.2Nm All in one kit: 1* Double Rail Slide Table 1* Integrated Nema 23 57mm Closed Loop Stepper Motor Driver 1* 8mm to 8mm Coupling Open-loop Stepper Motor Driver Closed-loop Stepper Motor DriverClosed-loop All-in-one Nema23 57mm Flange Stepper Motor Technical Parameters Model Holding torque (N.m) Motor type Encoder Current (A) Phase resistance (Ω) Moment of inertia (g.cm ² ) Rated speed (rpm) Step angle Phase Shaft Dia. (mm) Driver model Input Voltage 57HS5630A4 1.2 Open-loop / 3 0.8 280 300-600 1.8° 2 Phase 8 TB6600 9~42VDC 57HS8030A4 2 3 1.2 580 57HS11230A4 3 3 1.6 800 57HB250-54B 1.5 Closed-loop 1000 line 4.2 0.4 280 HB808C 24~80VDC 57HB250-80B 2.2 4.2 0.7 500 57HB250-112B 3 4.2 0.8 800 HBT5756C 1.5 Closed-loop All-in-one 1000 line 3 0.93 300 Built in 24～55VDC (36V) HBT5776C 2 3.5 0.4 450 HBT57112C 3.2 4.5 0.78 760 Sliding Table Technical Parameter: ●Model: SXG5080 ●Mobile panel size: 50*80mm ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610 ●Ballscrew accuracy: C7 level ●Effective stroke: 100mm-1000mm Optional ●Total length: Effective stroke+120mm ●Guide diameter: 12mm ●Guide Type: 2*MGN12R ●Slider Type: 2*MGN12H ●Horizontal load: Max 60KG ●Vertical load: Max 30KG ●Maximum speed: 500mm/s ●Ballscrew Repeat positioning accuracy: 0.02-0.03mm ● Supported motor bracket (support customization): Compatible with Nema 17/ Nema 23 stepper motor ●Ballscrew and linear rail material: Carbon steel and bearing steel ●Base plate material: Aluminium alloy Open-loop Stepper Motor Driver Technical Parameter: ●Model: TB6600 ●Input voltage: DC 9-42V ●Input/ Output current: 0.5-3.5A ●Maximum power: 150W ●Subdivision: 1,2,4,8,16,32 ●Operating environment temperature: -10～45℃ ●Storage temperature: -40℃～70℃ Closed-loop Stepper Motor Driver Technical Parameter: ●Model: HB808C ● Type: DSP closed loop stepper motor drive ●Maximum peak current: 13A ●Impulse response frequency: 200KHz ●Micro-stepping driver: 200~25600ppr ●Input Voltage: 24-80VDC ●Protective function: Over voltage, over current, tracking error, over proof ●Signal input: Support PUL/DIR and CW/CCW modes (difference) ●Compatible: 4.5~28V signal (Don't need a resistor)
