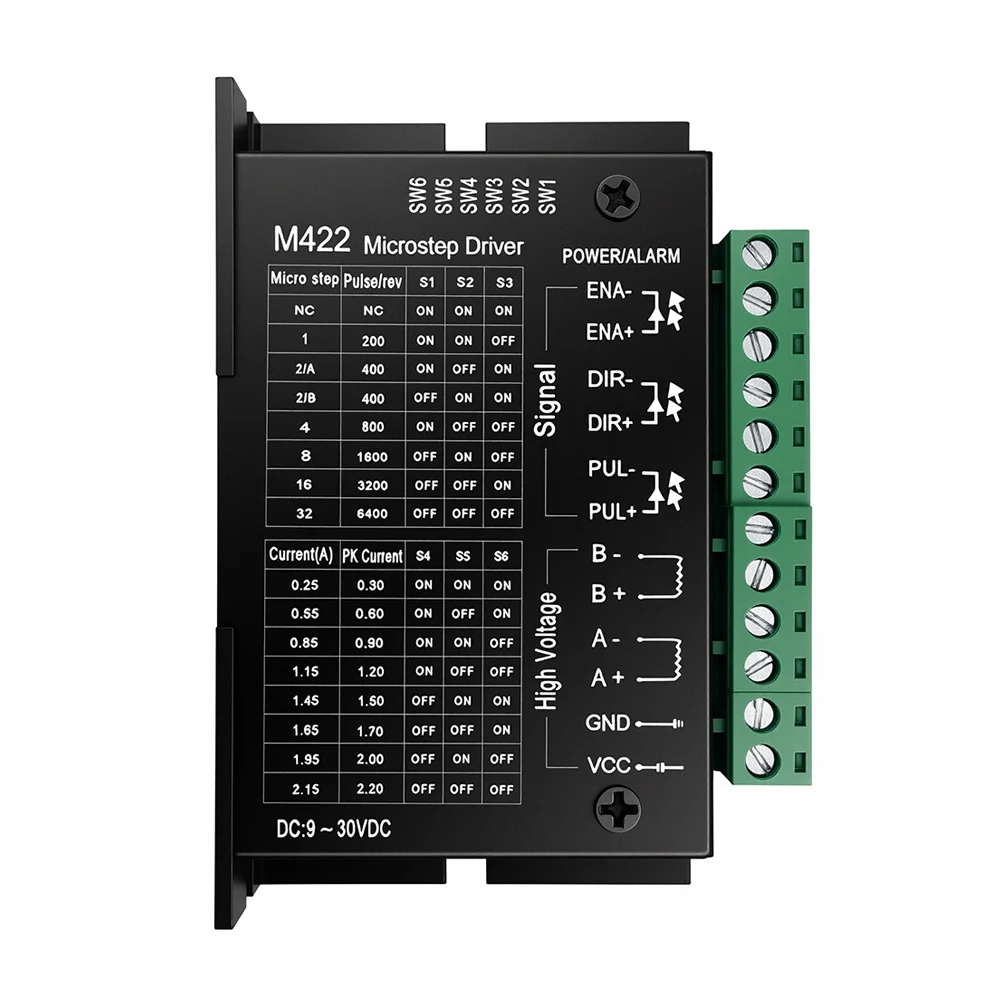

1* Sliding Table 1* Nema11 2PH Open-loop Stepper Motor 1* M422 Driver (If you choose the drive kit) Sliding Table Specifications: Model: T06 Slide type: Trapezoidal lead screw sliding table Horizontal load: 5KG (Max) Vertical load: 2.5KG (Max) Effective stroke: 50mm-300mm Total Length: Effective Stroke+75mm Mobile panel size: 30mm*32mm Repeat positioning accuracy: 0.02mm-0.03mm Base plate material: Aluminum profile Rail material: Bearing steel Maximum speed: 80mm/s Rail width: 8mm Block: MGN8H Screw Precision: C7 Pitch: 1mm/2mm/4mm/6mm/12mm (1mm pitch means that the motor rotates once and the moving panel moves 1mm. 1mm/2mm Pitch has self-locking function,suitable for Z-axis ) PS: We support customized connecting plates for multi-axis systems. Stepper Motor Specifications : Model: 28HB30-401A (Support customized 28HB40-401A motor) Motor Flange Size: NEMA 11(28MM) Holding torque: 0.07N.m Body length: 30mm Shaft diameter: 5mm Type: Hybrid Motor Phase: 2 Phase Current : 0.6A Certification: CCC,CE, ISO Step angle: 1.8degree M422 Driver Specifications: ※ Signal input: single ended, pulse/direction ※ Segmentation options: 1/2/4/8/16/32 segmentation Output current: 0.2A-2.2A Input voltage: 9-30VDC, recommended operating voltage: 12-24VDC ※ Automatic halving of current when stationary ※ Can drive 4, 6, 8 wire two-phase, four phase stepper motors, 39 type, 42 type 1.0Nm and below motors ※ Optocoupler isolation signal input, strong anti-interference ability ※ It has functions such as overheating, overcurrent, undervoltage locking, and input voltage anti reverse protection ※ Compact size, easy to install ※ External signal 3.3-24V universal, no need for series resistance
